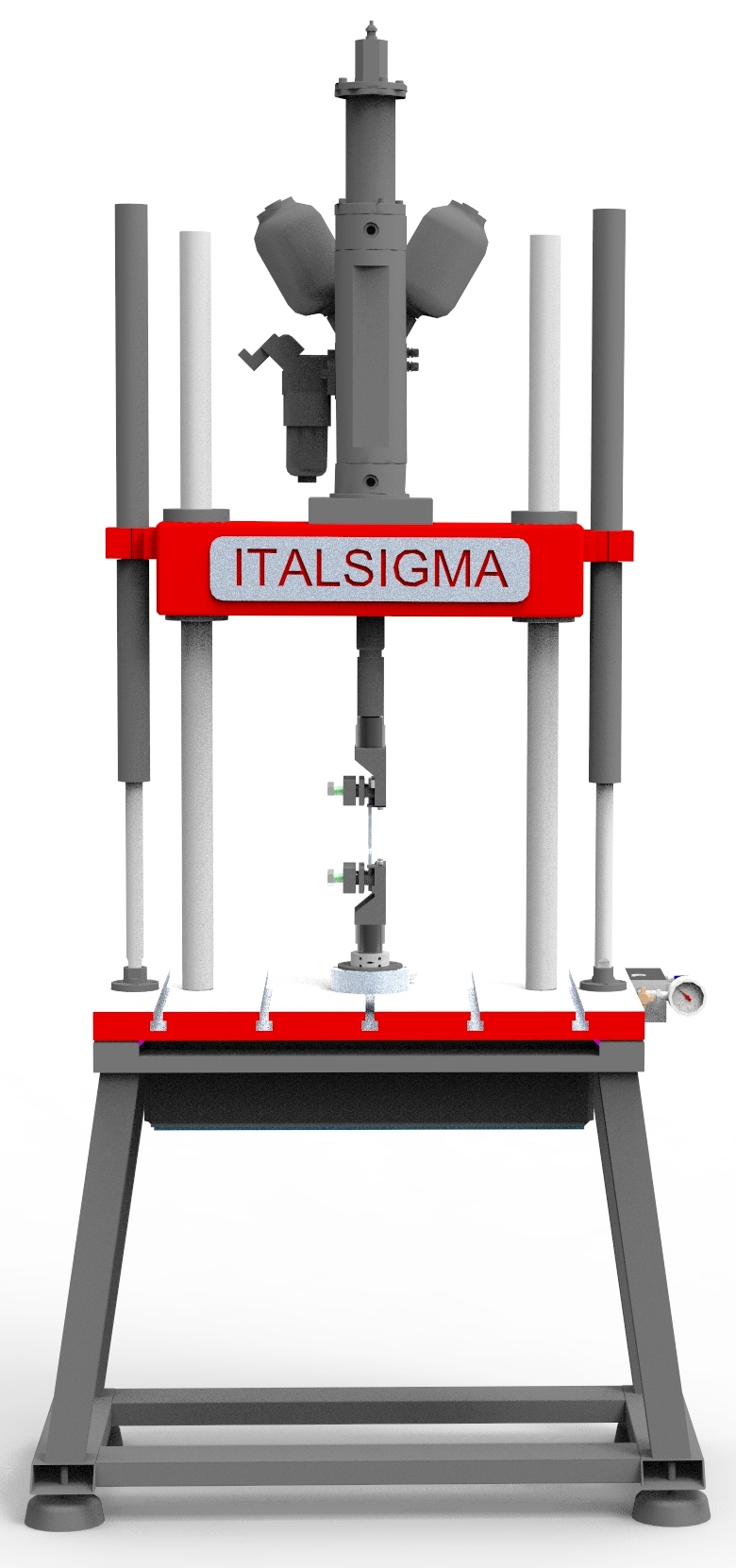

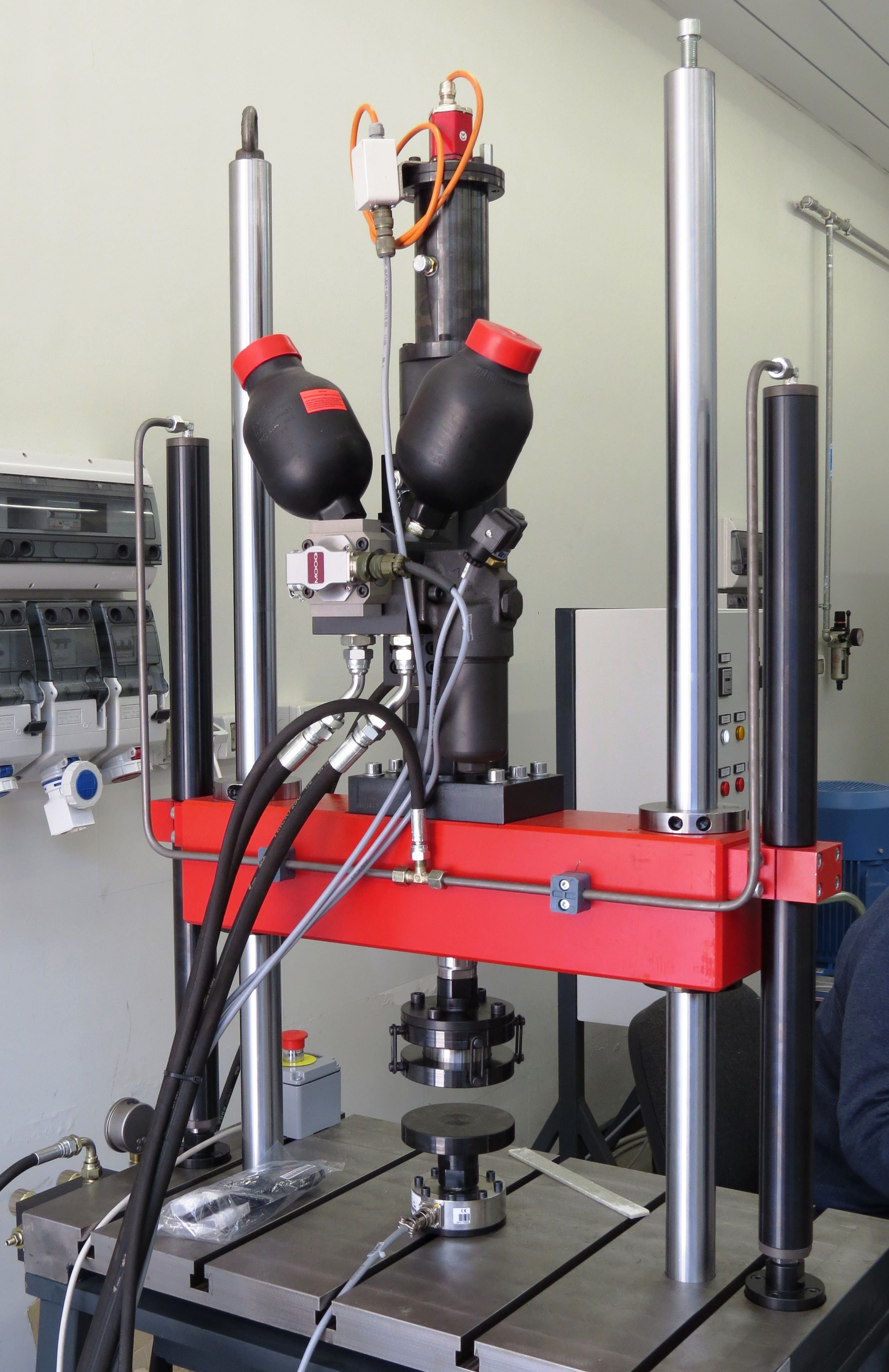

Servo-hydraulic - FPF25
Two columns testing machine with a servo-cylinder mounted on the upper crossbeam and lower grooved base.
Possibility to anchor the load cell on the actuator or on the lower grooved base.
Layout
Compression Grip
Bending Grip

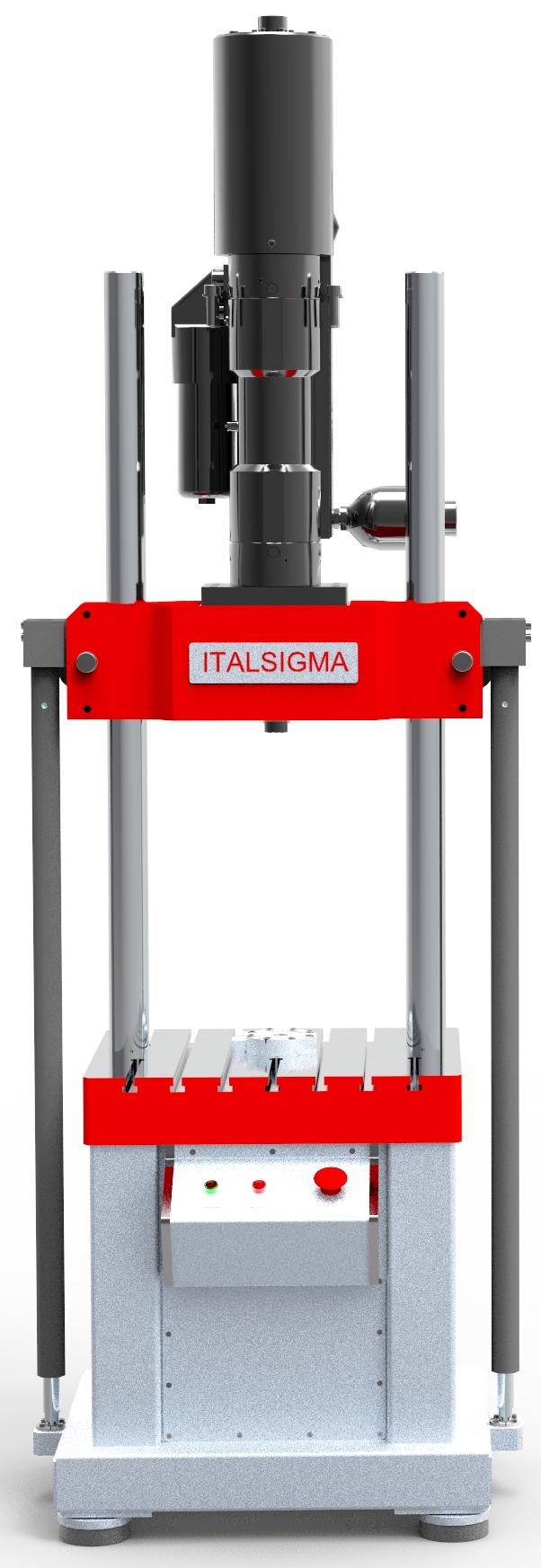

Servo-hydraulic - FPF50
Two columns testing machine with a hydrostatic-bearing servo-cylinder mounted on the upper crossbeam and lower grooved base.
Possibility to anchor the load cell on the actuator or on the lower grooved base.

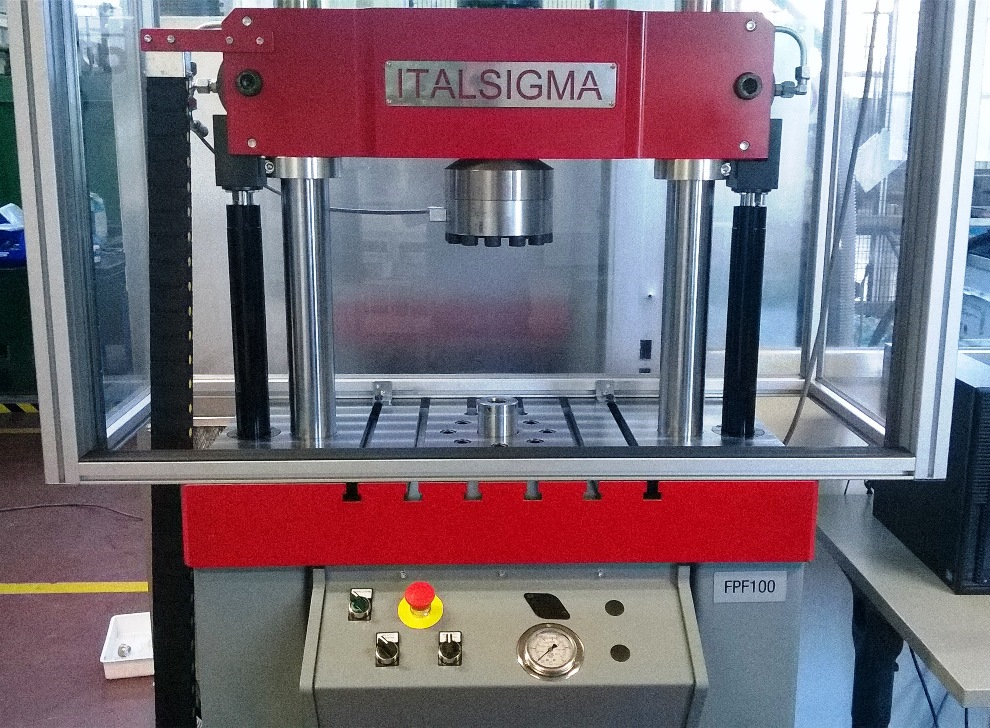

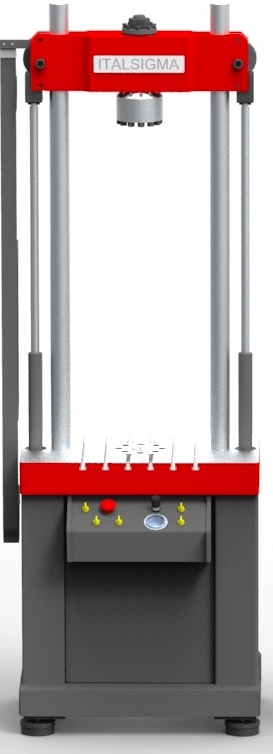

Servo-hydraulic - FPF100
Two columns testing machine with a servo-cylinder mounted under the lower grooved base.
Possibility to anchor the load cell on the actuator or on the upper crossbeam.
FPF100 Brochure
Image Calibration

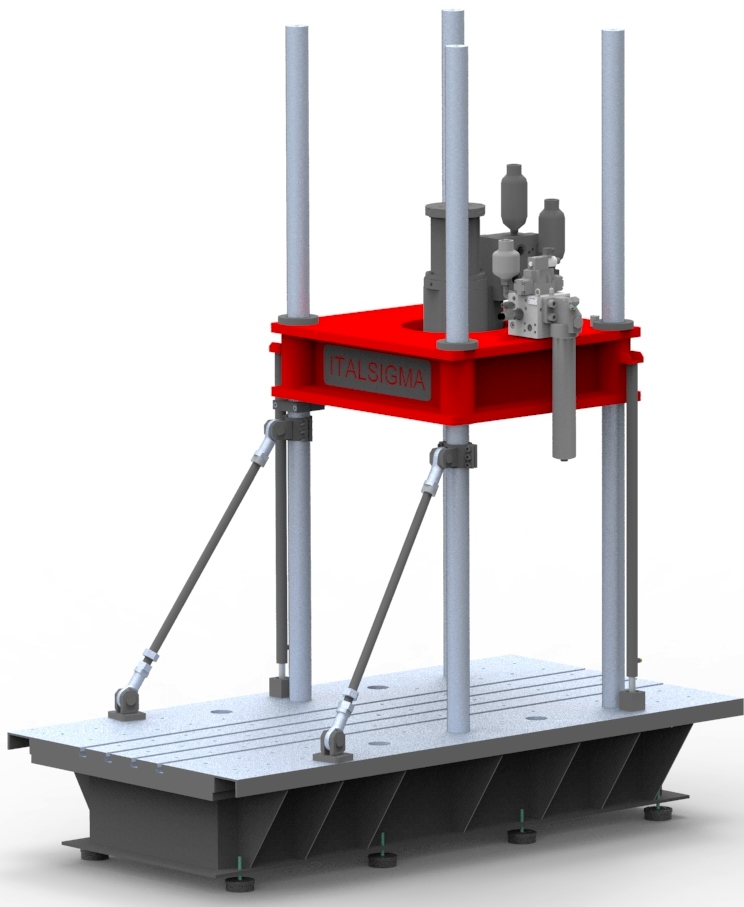

Servo-hydraulic - FPF500
Four columns testing machine with lateral reinforcements on the columns and able to withstand the test loads without enduring deformations up to 500 kN.
The base is equipped with grooves on the surface for the fixing of equipment.
Base surface 2900 mm x 1500 mm. Hydraulic raising of the upper crossbeam.

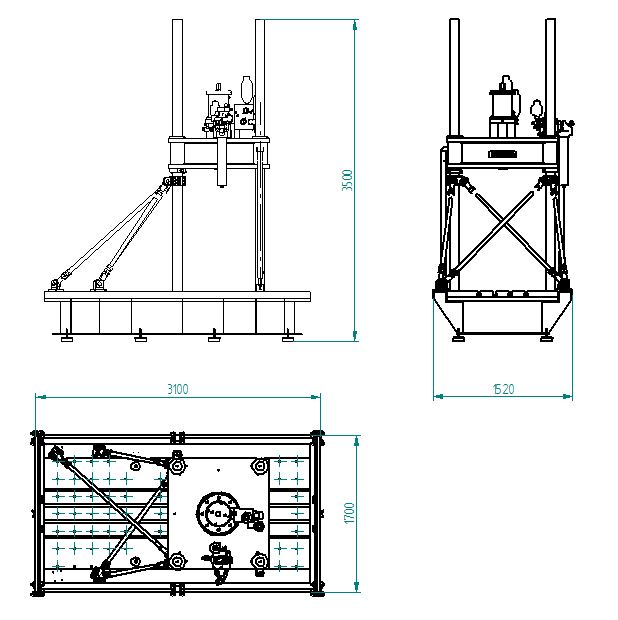

Image Dimensions

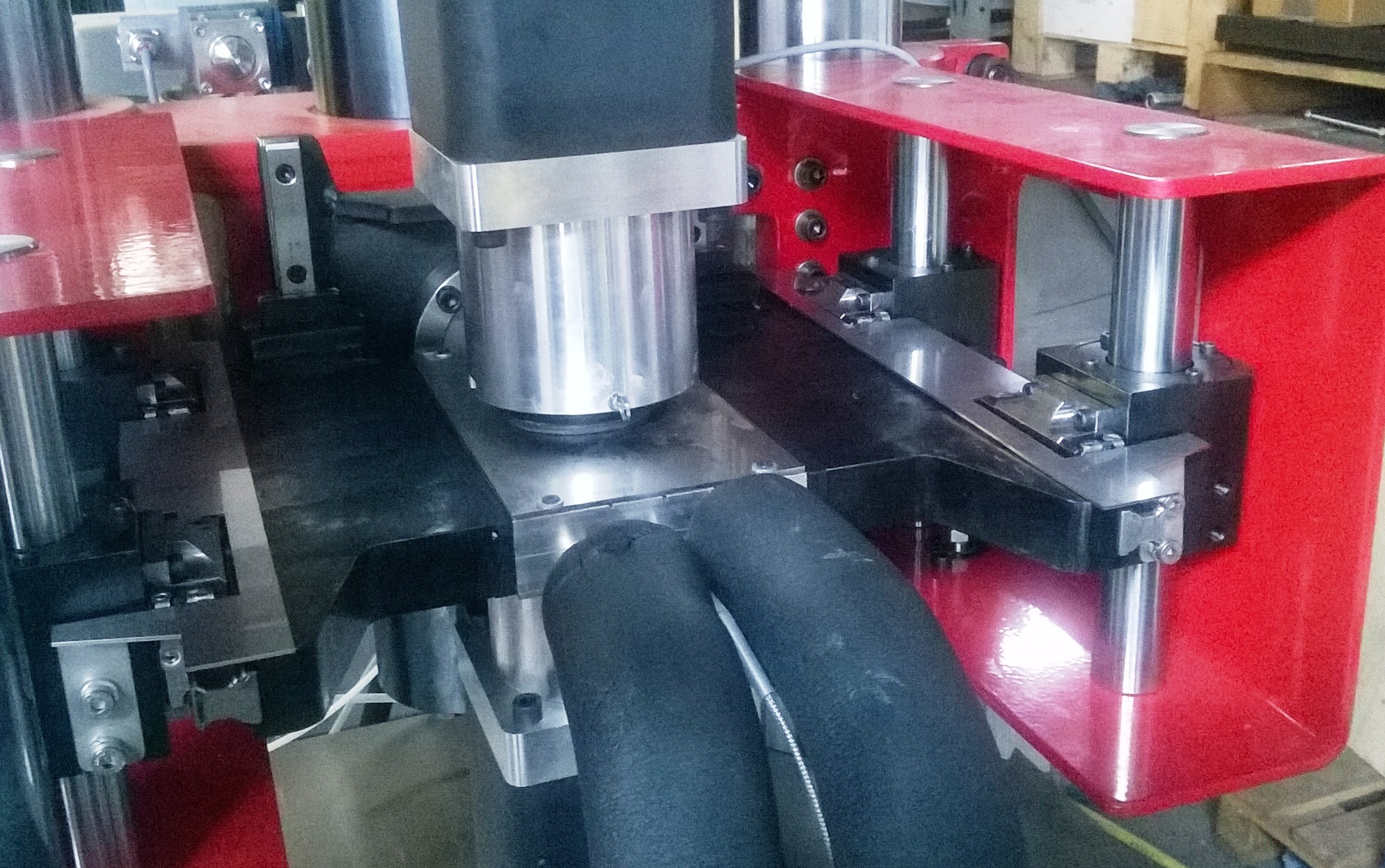

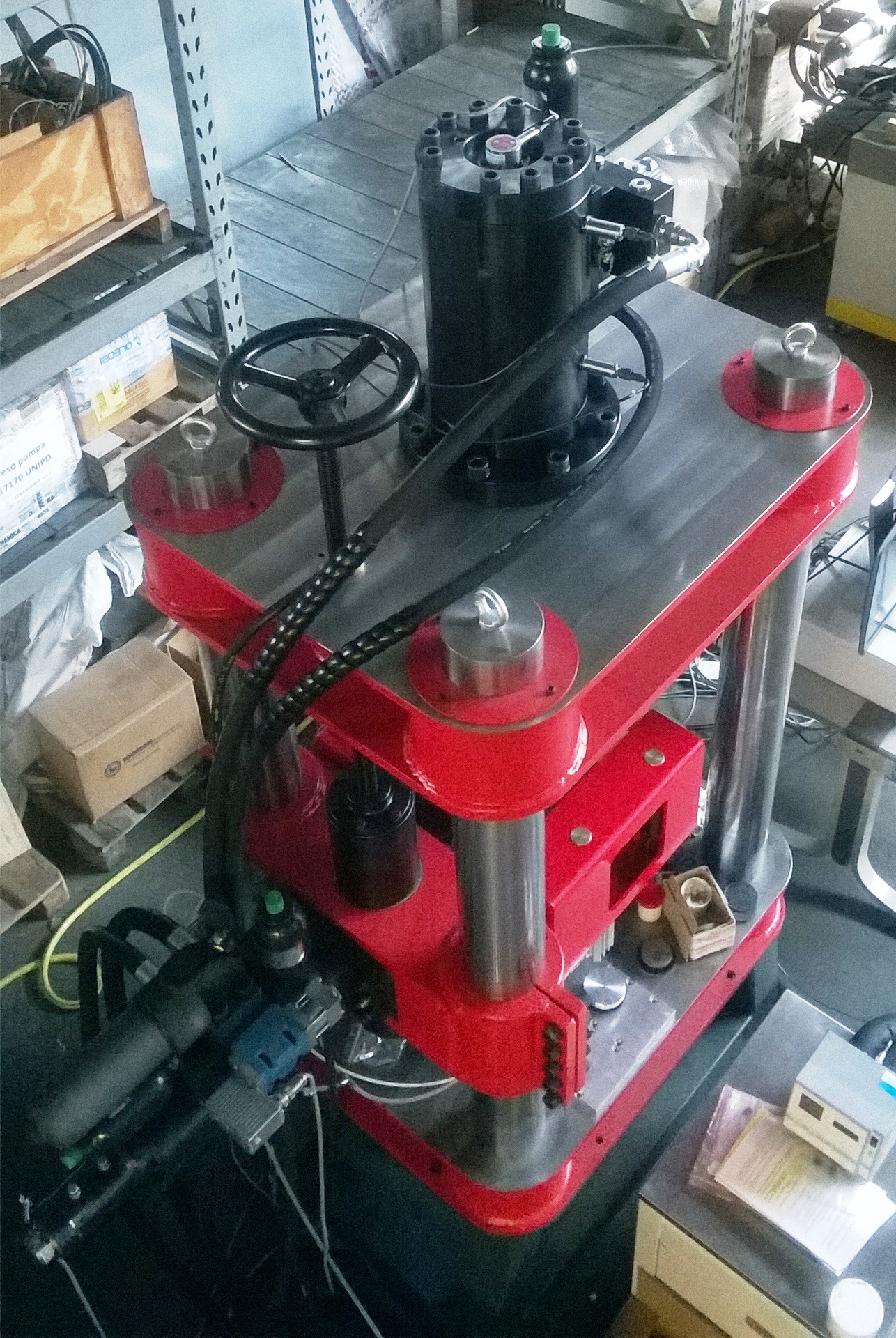

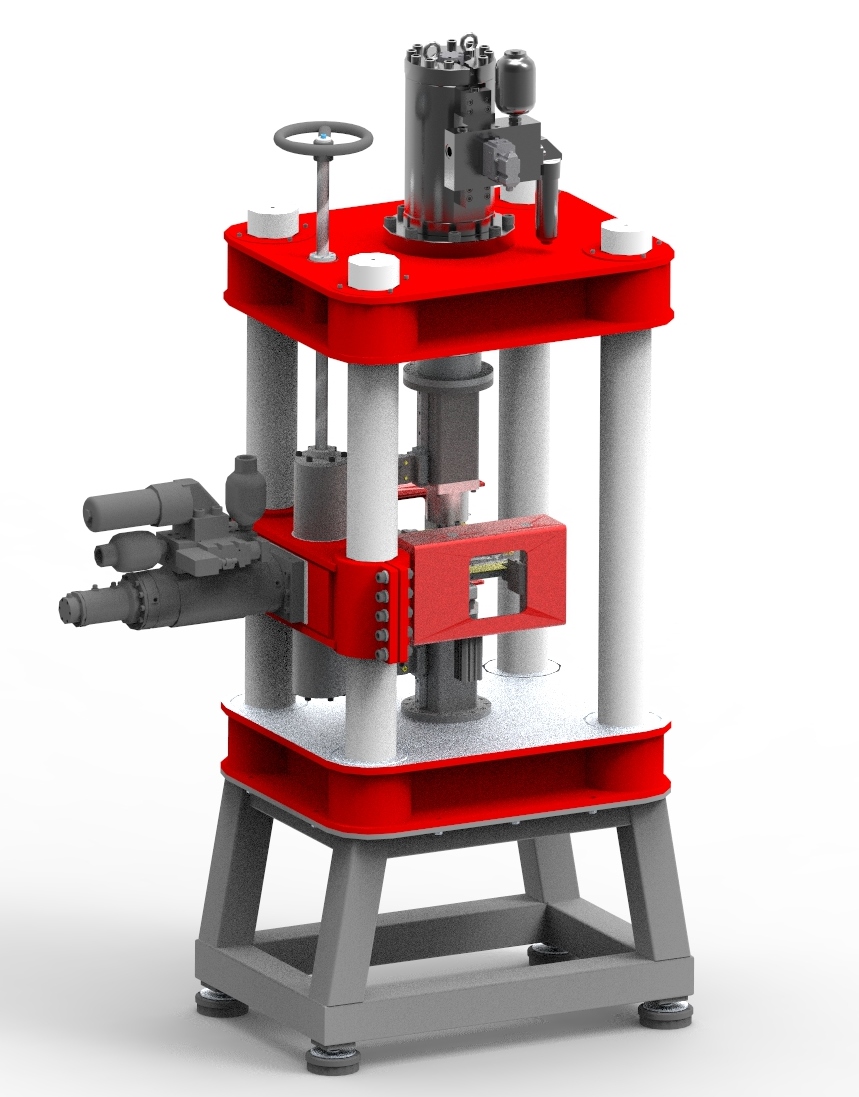

Servo-hydraulic - BX0501
Four columns biaxial testing machine, designed for a vertical force of 500 kN and a horizontal force of 100 kN.
Optional: climatic chamber and cryostat for tests with temperature range from -50°C to +80°C.
BX0501 Brochure
Video BX0501
Image Climatic Chamber
